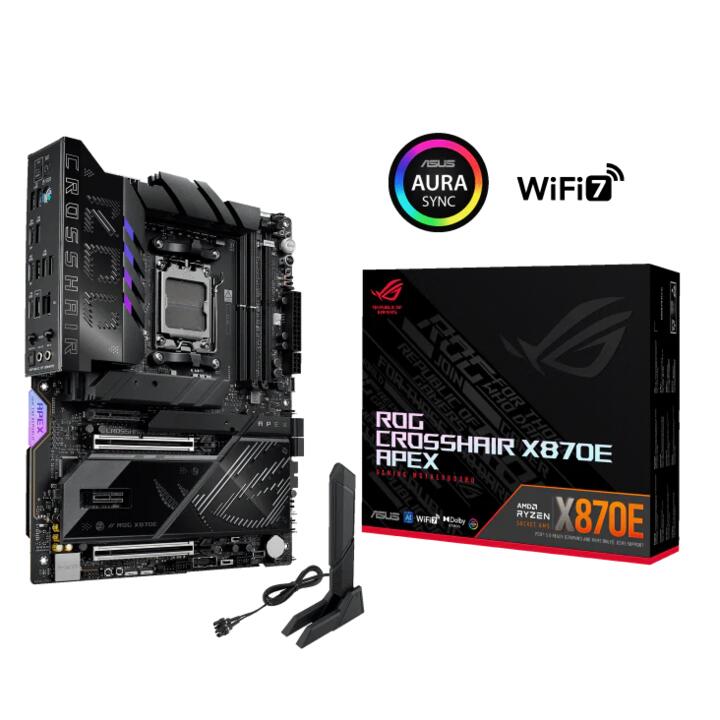

Asus ROG CROSSHAIR X870E APEX AM5 Gaming Motherboard

Description

The ASUS ROG Crosshair X870E APEX is a top-tier ATX motherboard designed for enthusiasts aiming for extreme overclocking and high-performance builds. Built on the AMD X870E chipset, it supports AMD Ryzen™ 7000, 8000, and 9000 series processors with the AM5 socket.B&H Photo Video
🔧 Key SpecificationsPower Delivery: 18+2+2 power stages (110A) with ProCool II connectors
Memory Support: 2× DDR5 DIMM slots, up to 128GB, supporting speeds up to 9600+ MT/s (OC)
Expansion Slots: 2× PCIe 5.0 x16 SafeSlots with Q-Release Slim
Storage Options:
3× PCIe 5.0 M.2 slots onboard
2× PCIe 4.0 M.2 slots via ROG DIMM.2 module
4× SATA 6Gb/s ports
USB Ports:
Rear: 2× USB4 Type-C (40Gbps), multiple USB 3.2 Gen 2 Type-A
Front: USB 3.2 Gen 2×2 Type-C with Quick Charge 4+ (up to 60W)
Networking:
Realtek 5Gb Ethernet
Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna
Bluetooth 5.4
Audio: ROG SupremeFX 7.1 Surround Sound with ALC4080 codec and Savitech SV3H712 amplifier
Form Factor: ATX (30.5 cm x 24.4 cm)
🌟 Standout FeaturesOverclocking Tools: Dynamic OC Switcher, Core Flex, and AI Overclocking for optimal performance tuning
Cooling Enhancements: ROG Memory Fan Kit included for improved DDR5 cooling
DIY-Friendly Design: Features like PCIe Slot Q-Release Slim, M.2 Q-Latch, and pre-mounted I/O shield simplify installation
Aesthetic Touches: Polymo Lighting II and Aura Sync RGB for customizable lighting effects
