COOLER MASTER MASTERBOX MB520 WHITE, TG FRONT PANEL, 3X ARGB FAN, TG SIDE PANEL, ATX, ARGB

Description

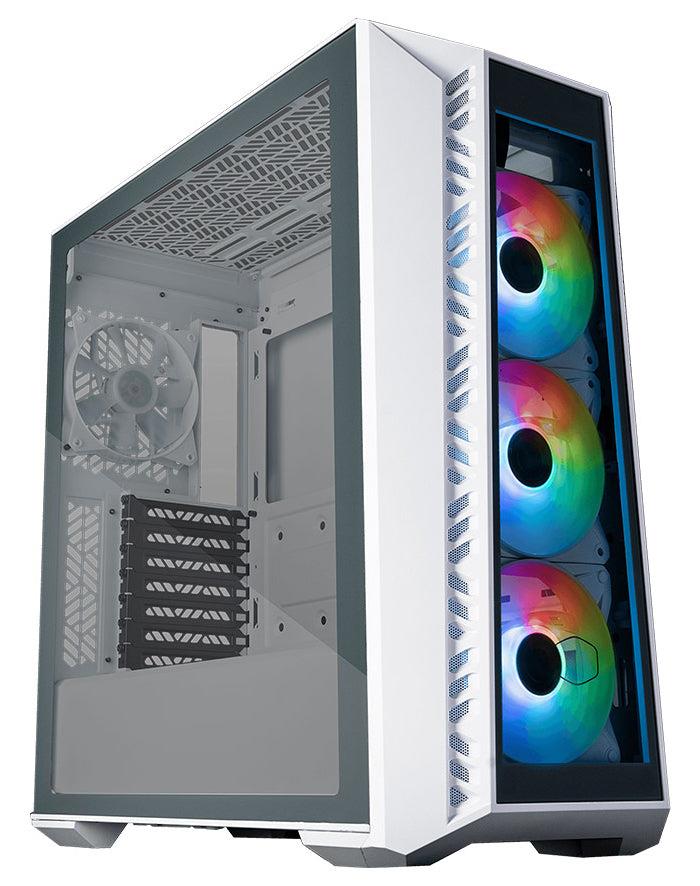

COOLER MASTER MASTERBOX MB520 WHITE, TG FRONT PANEL, 3X ARGB FAN, TG SIDE PANEL, ATX, ARGB
Cooler Master MasterBox MB520 White ATX Case, Tempered Glass Side/Front Panel, No PSU, 1x USB 3.2, 1x USB-C 3.2, HD Audio, 3x 120mm CF120 ARGB Front Fan Included, Ventilated PSU Shroud, Screwless and Tool-free Design, ARGB Controller Included

MASTERBOX 520
REACHING NEW BRIGHTS
MasterBox 520 is the ideal chassis for satisfying the needs of both novice and experienced gamers.Tempered Glass Front PanelThree CF120 ARGB Fans IncludedARGB Controller IncludedRemovable Top PanelScrewless & Tool-Free TG Side PanelRemovable HDD cage

TEMPERED GLASS FRONT PANEL
Enhance the beauty of your system with the crystal-clear tempered glass front panel, designed to showcase lighting effects of installed ARGB devices.

WHITE DESIGN
Elevate your setup with the white version of the MasterBox 520.

CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

REMOVABLE TOP PANEL
The top panel is entirely removable for improved access and easy installation of cooling solutions such as fans and radiators.

SCREWLESS & TOOL-FREE TG SIDE PANEL
The tempered glass side panel is secured with pins for easy removal, facilitating quick, easy installation.

VERSATILE COOLING OPTIONS
Supports up to seven 120mm fans and dual 360mm radiators on the top and front panel.

(RE)MOVABLE HDD CAGE
The HDD cage is completely (re)movable for improved access during assembly and system upgrades.

ARGB/FAN HUB INCLUDED
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

UPGRADED REMOVABLE DUST FILTER BRACKET
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.

RICH CONNECTIVITY
The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, a USB 3.2 (Gen 1) Type-A port, and one 3.5mm (audio + mic) headset jack.

BREATHABLE POWER SUPPLY SHROUD
The ventilated PSU cover supports both active and passive cooled PSUs installed in multiple orientations.

HARDWARE COMPATIBILITY
MasterBox 520 is natively compatible with ITX, M-ATX and ATX motherboards. E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12″ x 10.7″.

Product Specs

SPECIFICATIONS

MODEL NUMBER
MB520-WGNN-S01

EXTERIOR COLOUR
White

MATERIALS – EXTERIOR
Steel, ABS Plastic, Tempered Glass

MATERIALS – LEFT SIDE PANEL
Tempered Glass

DIMENSIONS (L X W X H)
502 x 210 x 498mm (Incl. Protrusions)443 x 210 x 498mm (Body Size)

VOLUME
50L

MOTHERBOARD SUPPORT
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12” x 10.7” motherboards, may impact cable management feature)

EXPANSION SLOTS
7

3.5″ DRIVE BAYS
2

2.5″ DRIVE BAYS
3

I/O PANEL
1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button

INCLUDED ACCESSORIES
ARGB Fans Hub

PRE-INSTALLED FANS – FRONT
3x CF120 ARGB

PRE-INSTALLED FANS – REAR
1x MasterFan Lite 120

FAN SUPPORT – TOP
3x 120mm, 2x 140mm

FAN SUPPORT – FRONT
3x 120mm, 2x 140mm

FAN SUPPORT – REAR
1x 120mm

RADIATOR SUPPORT – TOP
120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)

RADIATOR SUPPORT – FRONT
120mm, 140mm, 240mm, 280mm, 360mm

RADIATOR SUPPORT – REAR
120mm

CLEARANCE – CPU COOLER
165mm

CLEARANCE – PSU
200mm, (Recommended up to 170mm)

CLEARANCE – GFX
410mm

DUST FILTERS
Bottom, Front, Top

POWER SUPPLY SUPPORT
ATX

WARRANTY
2 Years

SERIES
MasterBox Series

SIZE
Mid Tower
