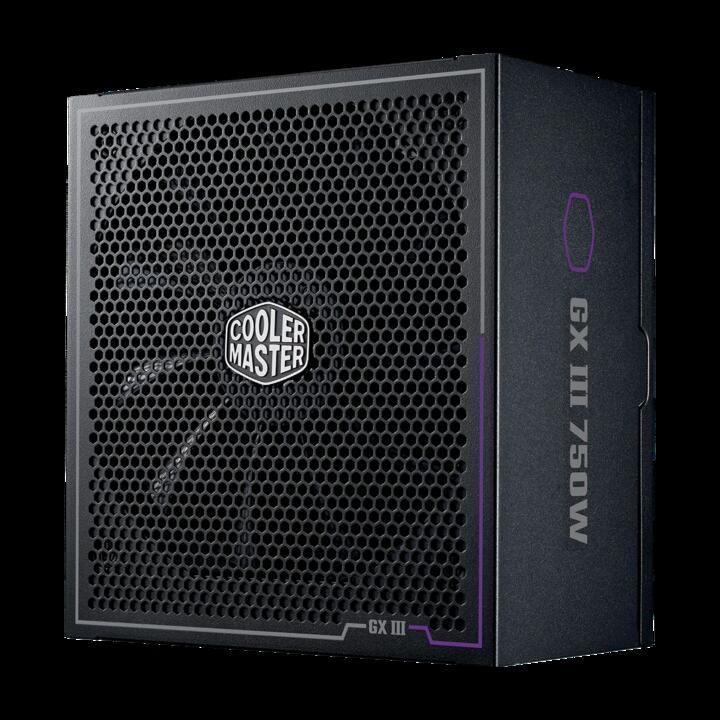

Cooler Master MPX-7503-AFAG-BAU GX III Gold 750W 80+ Gold Fully-Modular ATX 3.0 Power Supply

Description

GX II Gold 750

GX II Gold 750
BUILT TO LAST

ATX 3.0 support & a durable 12VHPWR cable80 Plus Gold certified efficiencySilent fan performance with a zero-RPM modeSeparated thermal technologiesFully modular cabling10-year warranty

overview

Gallery

Specifications

BUILT TO LAST

The GX II Gold brings a new standard of durability and efficiency to Cooler Master’s lineup of power supply units combined with ATX 3.0 support.

ATX 3.0 support & a durable 12VHPWR cable

Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.

CERTIFIED EFFICIENCY
The GX II Gold is certified to achieve more than 90% efficiency at typical loads.

SILENT FAN PERFORMANCE WITH A ZERO-RPM MODE
A zero-RPM default mode automatically turns the fan on when your PC reaches a specific temperature.

Separated thermal technologies

Separated thermal technologies provide improved thermal performance and a large, high-quality Japanese capacitor features reduced ripple noise and enhanced reliability.​

Fully modular cabling

Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

PSU CALCULATOR
Need help choosing the right power supply for your system?Try out our comprehensive and easy-to-use PSU calculator.
More

Specifications
Downloads
EAN / UPC

Specifications

Model
MPX-7503-AFAG-2***

ATX Version
ATX 12V Ver. 3.0

PFC
Active PFC

Input Voltage
100-240V

Input Current
10-5A

Input Frequency
50-60Hz

Dimensions (L x W x H)
160 x 150 x 86 mm

Fan Size
120mm

Fan Bearing
HDB

Fan Speed
2500±10% RPM

Efficiency
≥90% @ Typical Load

80 PLUS Rating
80 PLUS Gold

ErP 2014 Lot 3
Yes

Operating Temperature
0-40°C

Power Good Signal
100 – 150 ms

Hold Up Time
≥16ms at 80% Load

MTBF
>100,000 Hours

Protections
OPP, OVP, OTP, OCP, SCP, UVP, Surge and Inrush Protection

Regulatory
cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.)

ATX 24 Pin Connectors
1

EPS 4+4 Pin Connectors
1

EPS 8 Pin Connector
1

SATA Connectors
6

Peripheral 4 Pin Connectors
2

PCI-e 6+2 Pin Connectors
4

12VHPWR Connector
1

Series
GX Series

80 Plus
Gold

Modular
Fully Modular

Category
Above 750W
