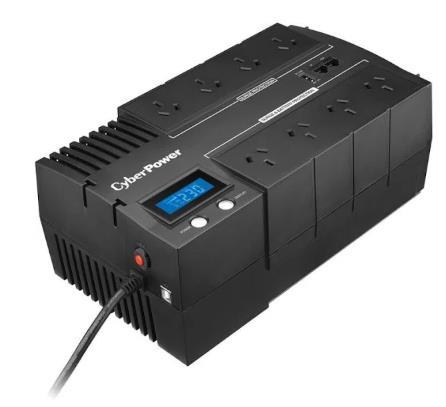

CyberPower BR1200ELCD 1200VA/720W (10A) Line Interactive UPS

Description

CyberPower BRIC-LCD 1200VA/720W (10A) Line Interactive UPS -(BR1200ELCD)CyberPower BR1200ELCD offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.

The UPS provides Automatic Voltage Regulation (AVR) to maintain a safe voltage for connected equipment. The featured data line protection protects phones, networks, and other communication equipment against surges/spikes and other power irregularities. Users can access precise information of critical power/battery conditions with the LCD status monitor.

Line-interactive UPS Topology

Simulated Sine Wave Output

USB Charging Port(s)

Phone/Fax/Modem/DSL/Network Protection

PowerPanel Management Software

Energy Saving Technology

Automatic Voltage Regulation (AVR)

Surge and Spike Protection

LCD Status Display

Wall Mount Installation

GENERAL

Phase
Single Phase
Form Factor
Desktop
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS™ Bypass Technology
INPUT

Nominal Input Voltage ( Vac )
230 ± 10%
Input Voltage Range ( Vac )
170 ~ 290
Input Frequency ( Hz )
50 ± 5
60 ± 5
Input Frequency Detection
Auto-sensing
Rated Input Current ( A )
5.45
Input Connector Type
AU          　
Power Cord Length (ft.)
5
Power Cord Length (m.)
1.5
OUTPUT

Capacity (VA)
1200
Capacity (Watts)
720
On Battery Waveform
Simulated Sine Wave
On Battery Voltage(s) ( Vac )
230 ± 10 %
On Battery Frequency ( Hz )
50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)
Single Boost, Single Buck
Overload Protection
Circuit Breaker
Outlet(s) – Total
8
Outlet Type
AU x 8   　
Outlet(s) – Battery & Surge   Protected
4
Outlet(s) – Surge-Only Protected
4
Typical Transfer Time ( ms )
4
USB Charging Port(s)
USB-A x 1
USB Charging Total Output
5 V/ 1 A
BATTERY

Runtime at Half Load ( min )
9
Runtime at Full Load ( min )
2
Runtime at 60W ( min )
80
Runtime at 90W ( min )
51
Typical Recharge Time ( Hours )
8
Start On Battery
Yes
User-replaceable
Yes
Battery Type
Sealed Lead-acid
Battery Cartridge (RBP)
RBP0063
Battery Cartridge (RBP) Quantity ( pcs )
2
SURGE PROTECTION & FILTERING

Surge Suppression ( Joules )
150
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
1-in, 1-out
MANAGEMENT & COMMUNICATIONS

LCD Panel
Yes
LCD Information Display
Power Status, Battery Status, Load Status, Other Information
LCD Setting & Control
Alarm Setting
LED Indicators
Power On, Line Mode, Battery Mode, Low Battery
HID Compliant USB Port(s)
1
Audible Alarms
Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )
USB Cable x1, Phone Line x1
Power Management Software
PowerPanel Personal (Recommended)
PHYSICAL

Wall Mount Installation
Yes
Enclosure Construction
Plastic
Color
Black
PHYSICAL SIZE – UPS MODULE

Dimensions (WxHxD) (in.)
6.54 x 4.65 x 11.34
Dimensions (WxHxD) (mm.)
166 x 118 x 288
Weight (lbs.)
18.08
Weight (kg.)
8.2
SHIPPING DIMENSIONS

Dimensions (WxHxD) (in.)
6.22 x 9.06 x 12.80
Dimensions (WxHxD) (mm.)
158 x 230 x 325
Weight (lbs.)
18.52
Weight (kg.)
8.4
ENVIRONMENTAL

Operating Temperature (°F)
32 ~ 104
Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )
0 ~ 90
Operating Elevation ( feet/meters )
0-9,843 feet (0-3,000 meters)
Storage Temperature (°F)
-4 ~ 122
Storage Temperature (°C)
-20 ~ 50
Storage Relative Humidity (Non-condensing) ( % )
0 ~ 90
Storage Elevation ( feet/meters )
0-9,843 feet (0-3,000 meters)
Online Thermal Dissipation ( BTU/hr )
137
Audible Noise at 1.5M from Surface of Unit ( dBA )
40
CERTIFICATIONS

Certifications
CE, RCM
RoHS
Yes
OTHERS

Package Contents
BR1200ELCD UPS
USB Cable
Phone Line
User’s Manual
Product Registration Card
