MSI Cubi 5 12M-007BAU Barebone Mini PC. i7-1255U/1x M.2/1x 2.5″/2x DDR4/1x USB 3.2 Gen 2 Type A/1x Thunderbolt 4 (USB Type C port)/2x RJ45/Wireless/BT/1x HDMI/1x DP/Black/ 3Yr

Description

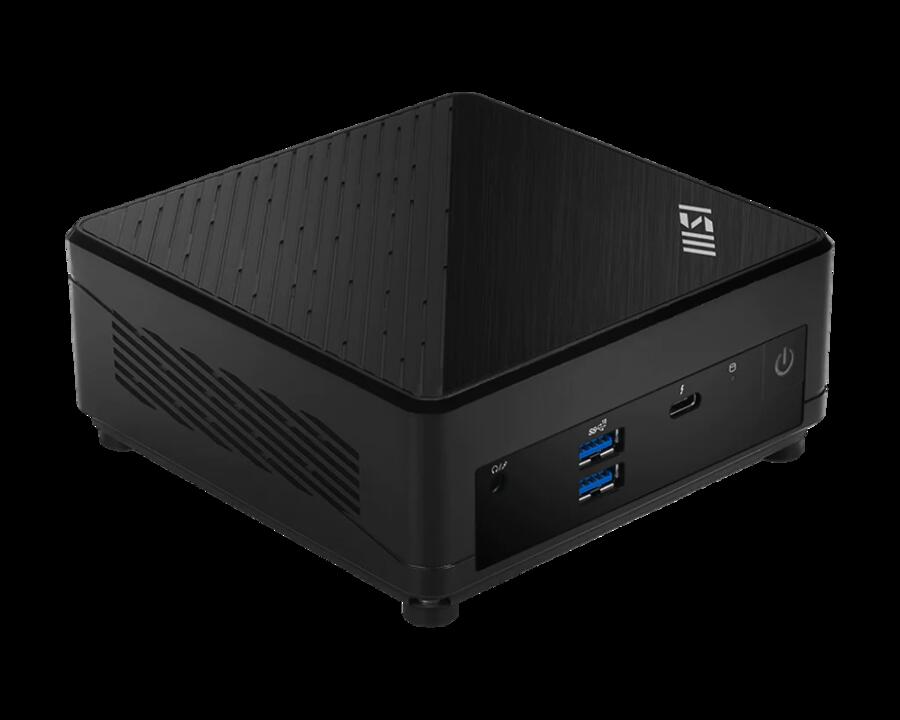

MSI Cubi 5 12M-007BAU Barebone Mini PC

Windows 11 Home- MSI recommends Windows 11 Pro for business
Up to 12th Gen Intel® Core™ i7 Processors
Support up to 8K UHD Display
Support three displays that allow you to see more and do more
Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
Experience 75% lower latency with WiFi 6E technology(optional)
FW TPM design secures your confidential data with encryption keys
Supports standard VESA-mount

Specifications:

OPERATING SYSTEM:

Windows 11 Home- MSI recommends Windows 11 Pro for business

CPU:

Intel® Core™ i7-1255UIntel® Core™ i5-1235UIntel® Core™ i3-1215U

CHIPSET:

Intel® SoC

GRAPHICS:

Intel® Iris® Xe Graphics (Core i5 above with dual-channel memory)Intel® UHD Graphics (Core i3)

STORAGE:

1x M.2 SSD (NVMe PCIe Gen4 x4 / SATA auto switch)1x 2.5″ HDD / SSD

SYSTEM MEMORY:

2x DDR4 2666/ 3200MHz SO-DIMMs, up to 64GB

I/O (FRONT):

2x USB 3.2 Gen 2 Type A1x Thunderbolt 4 (USB Type C port)1x Mic-in/ Headphone-out combo

I/O (REAR):

2x USB 3.2 Gen 2 Type A2x RJ451x HDMI™-out (supports 4K @60Hz as specified in HDMI™ 2.0b)1x DP-out (1.4)

BLUETOOTH:

4.2 (for AC 3168)5.2 (for AX201)5.3 (for AX211)

WIRELESS LAN:

Intel Wireless AC 3168Intel Wireless AX201Intel Wireless AX211

LAN:

1x Realtek® RTL8111H1x Realtek® RTL8125BG-CG

COOLING SYSTEM:

Fan Cooler

AC ADAPTER / PSU: 65W

MANAGEMENT UTILITY:

MSI Center: Hardware Monitoring, Free Up Memory, Clean Up Disk, LAN Manager, MSI Recovery, F3 Recovery, Devices Speed Up, Smart Priority, Smart Image Finder, Noise Cancellation, Live Update, Microsoft App Update, System Info, Troubleshooting, Contact Us, MSI Forum & Channel

SECURITY UTILITY & DEVICE:

MSI Center: System Diagnosis

DIMENSION (WXDXH):

124 x 124 x 53.7 mm(4.88 x 4.88 x 2.11 inch)

WEIGHT (N.W./ G.W.):

0.55 kg / 1.4 kg

VESA MOUNT:

100 x 100 mm / 75 x 75 mm

VOLUME:

0.66 Liter / 1.39 pt

ACCESSORIES:

1x User Manual (Optional)1x Quick Guide1x Warranty Card1x Adpator1x Power CordVESA Mount Screws

CERTIFICATES:

FCC, CB/CE, UL & CUL, VCCI, RCM, ENERGY STAR

NOTE:

*Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware (see https://www.microsoft.com/en-us/windows/windows-11-specifications).



Key Features:

Small But Powerful
Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.
PEACE of MIND

Easy to use and make life simple
SUPPORT UP TO 8K RESOLUTION
Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home
BOLT TO THE NEXT POWER
Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.
Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly

Up to 40Gbps Data Transmission Speed

Up to 10GbE LAN Speed*With Thunderbolt to 10GbE Switch

Support USB-C Protocols

SEE MORE, DO MORE
With HDMI™, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency

MSI Cloud Center
FAST, SECURE & WIRELESS BACKUP

Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.

MSI CENTER

The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.
* The interface and functionality may differ due to version change. Please download the latest MSI Center APP through Microsoft Store
STABLE & POWERFUL
Equips up to 12th Gen Intel® Core™ i7 processor with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics

Up to Core i7-1255U Processor

Support Windows 11 Pro

Up to 3200MHz 64GB Dual Channel Memory

WI-FI 6E TECHNOLOGY
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps

Up to 3x Faster Gigabit Speeds
Up to 75% Lower Latency
Support MU-MIMO Protocols

USB 3.2 GEN 2 Type A
With data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time
DUAL LAN – SECURITY
More than Dual LAN, the best way to secure your data and prevent the Hacker
FW TPM SUPPORT
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security
EASY MAINTENANCE
Users can easily upgrade two SO-DIMM, one M.2 SSD or one 2.5” HDD/SSD by disassembling the cover. Made Cubi 5 an even flexible desktop and also reduce the time wasting on upgrading
VESA MOUNT SUPPORT
VESA Mountable design allows users to hook Cubi 5 up anywhere you like or mount it with MSI PRO MP243 Series . Not only improve the flexibility of using Cubi 5, but also let users make good use of their space at home or at office

External Power Switch Design
The external power switch makes it much more convenient to turn on the computer. When the computer is located in a hard-to-reach area, the external power switch on the desk is a better option than bending down to turn it on.

VARIOUS IO PORTS
With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won’t need an adaptor or a dock.

1. 1x Mic-in / Headphone-out combo
2. 2x USB 3.2 Gen 2 Type A
3. 1x ThunderBolt 4 (USB Type-C)
4. 1x HDMI™ out (2.0b)
5. 1x DP out(1.4)
6. 2x RJ45
7. 2x USB 3.2 Gen 2 Type A
8. DC Jack
