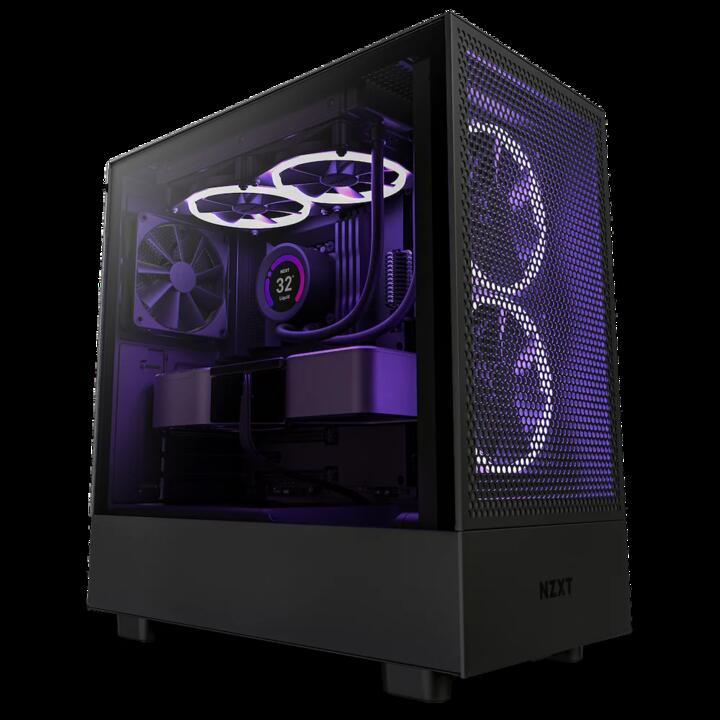

NZXT H Series H5 Flow Edition ATX Mid Tower Chassis All Black color

Description

H Series H5 Flow Edition ATX Mid Tower Chassis All Black color

The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

Dedicated fan on bottom inside panel is angled to cool GPU
Perforated front panel provides optimal ventilation
Intuitive cable management system with wide channels, hooks, & straps
Tool less access to front and side panels
Front panel supports up to 2 x 140mm fans or 280mm radiator
Top panel supports up to 2 x 120mm fans or 240mm radiator
Includes two pre-installed F120Q fans.

Specifications:

KEY SPECS

Motherboard Support:Mini-ITX, Micro-ATX, ATX

Enclosure Type:Mid-Tower

Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

DIMENSIONS

Height:464mm (With Feet)

Width:227mm

Depth:446mm

Weight:7.01 kg

COMPATIBILITY & CLEARANCE

Max CPU Cooler Clearance:Up to 165mm

Max GPU Clearance:Up to 365mm

Front Radiator Clearance:45mm

Cable Management:Up to 23mm

FRONT I/O PORTS

USB 3.2 Gen 1 Type-A:1

USB 3.2 Gen 2 Type-C:1

Headset Audio Jack:1

EXPANSION SLOTS

Standard:7

Vertical:0

DRIVE BAYS

2.5″:1+1

3.5″:1

FAN SUPPORT

Front:2 x 120mm / 2 x 140mm

Top:2 x 120mm

Rear:1 x F Series Quiet 120mm (Case Version) included

Bottom:1 x F Series Quiet 120mm (Case Version) included

RADIATOR SUPPORT

Front:Up to 280mm

Top:Up to 240mm

Rear:Up to 120mm

FAN SPECS

Model:F120Q (Case Version)

Speed:1200 ± 240RPM

Airflow:62.18 CFM

Static:1.05 mm – H2O

Noise:25.1 dBA

Fan Connector:3-pin
