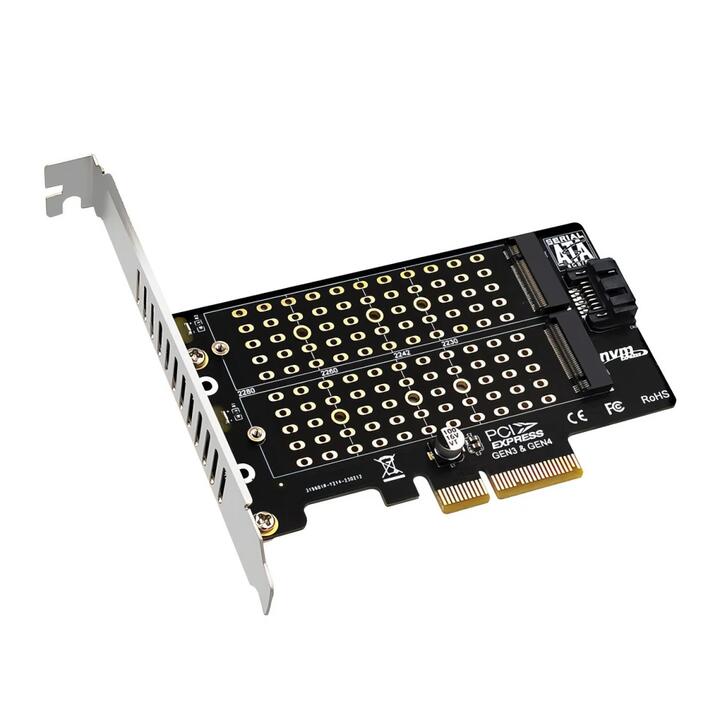

Simplecom EC412v2 NVMe and SATA M.2 SSD to PCIe x4 Expansion Card

Description

Simplecom EC412v2 NVMe and SATA M.2 SSD to PCIe x4 Expansion Card
EC412v2 is a PCI Express expansion card designed to add M.2 SSD to an existing PC motherboard. This card provides two M.2 slots, offering flexible support for both NVMe or SATA based M.2 SSDs.
The M Key M.2 slot, is dedicated to PCI-E based NVMe SSD, which utilize the high-speed PCI Express interface. This allows for significantly faster data transfer rates, with speeds reaching up to 64Gbps, making it ideal for demanding applications, large file transfers, and improving system responsiveness.
The B Key M.2 slot, is designed for traditional SATA M.2 SSD. This slot connects to PC via a SATA connector, supporting data transfer rates of up to 6Gbps, which is suitable for more traditional storage needs.
The expansion card offers the convenience of integrating both fast NVMe M.2 SSDs and traditional SATA M.2 SSDs simultaneously, making it an adaptable solution for upgrading and expanding storage on existing systems.
Features
One M Key M.2 slot for NVMe M.2 SSDOne B Key M.2 slot for SATA M.2 SSDPCIe x4 interface, also compatible PCIe x8 or x16 slotNVMe M.2 (M key) slot supports data transfer rate up to 64GbpsSATA M.2 (B key) slot supports data transfer rate up to 6GbpsSupports NVMe M.2 and SATA M.2 SSD simultaneouslySpecifications
Model: EC412v2Interface: PCI Express x4, SATA 6GbpsNumber of Supported M.2 Drive: 2Module Key: B Key (for SATA M.2 only), M Key (for NVMe M.2 only)PCIe Bandwidth: up to 32Gbps (PCIe 3.0), 64Gbps (PCIe 4.0)SATA Bandwidth: up to 6GbpsSupported M.2 SSD Size: 2230, 2242, 2260, 2280Important Note
M Key M.2 slot is only for use with NVMe M.2 SSD, B Key M.2 slot is only for use with SATA M.2 SSDSATA M.2 SSD on B Key slot requires a SATA 7-pin data cable connection to the motherboard for proper operation
Package Contents
1x PCIe Expansion Card1x Low profile bracket1x SATA CableScrews Set
