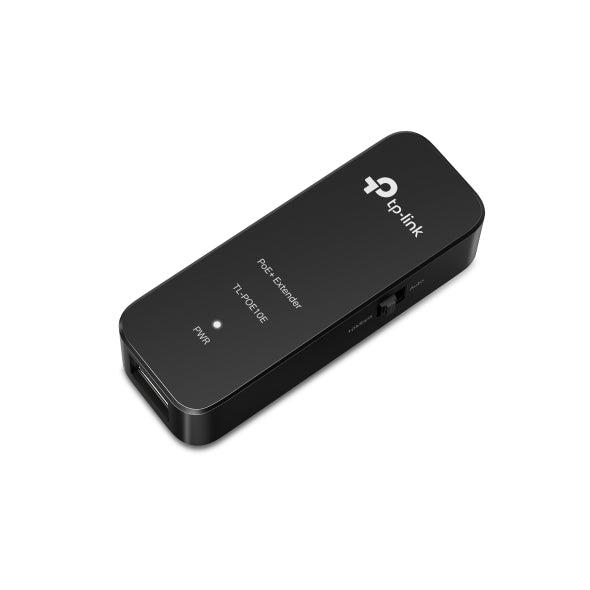

TP-Link TL-POE10E Fast Ethernet PoE+ Extender

Description

TP-Link TL-POE10E Fast Ethernet PoE+ Extender

Extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment
Compliance with 802.3af/at devices and supports the maximum output power of 20W
2 * 10/100Mbps Ports ensure faster transmission
Plug-and-Play, requires no configuration.

Specifications:

NETWORK

Standards and Protocols
IEEE802.3i, IEEE802.3u

GENERAL

Certification
FCC, CE, RoHS

Environment
• Operating Temperature: 0°C to 45°C (32°F to 113°F)• Storage Temperature: -40°C to 70°C (-40°F to 158°F)• Operating Humidity: 10% to 90%RH non-condensing• Storage Humidity: 5% to 90%RH non-condensing

Material
Plastics Casing

PACKAGE CONTENTS

Package Contents
• Fast Ethernet PoE+ Extender TL-POE10E• Installation Guide

HARDWARE FEATURES

Network Media
UTP/STP of Cat.5E or above (based on the standards that the connected devices comply with)

Ports
• 1 10 Mbps /100 Mbps RJ45 PoE IN Port• 1 10 Mbps /100 Mbps RJ45 PoE OUT Port

Basic Function
• 1 10/100Mbps RJ45 PoE IN port• 1 10/100Mbps RJ45 PoE Out port, supplies up to 20 W• Up to 250 m data and power transmitting range under 10Mbps mode• Plug-and-Play

Dimensions ( W x D x H )
2.33*0.85*0.52 in (71*26*16 mm)

POE ADAPTER FEATURES

Output
Complaince with 802.3af/at devies
