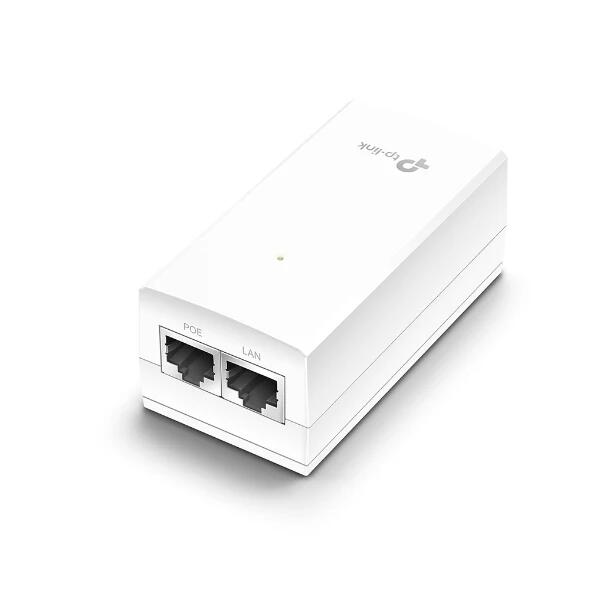

TP-Link TL-POE4818G 48V Passive PoE Adapter

Description

TP-Link TL-POE4818G 48V Passive PoE Adapter

48V Passive PoE supported
Auto-determine the necessary power requirements
Convenient wall-mounting design
Gigabit speed support
Plug-and-Play, requires no configuration

Specifications:

HARDWARE FEATURES

Interface
1 10/100/1000Mbps RJ45 Shielded Data IN Port1 10/100/1000Mbps RJ45 Shielded Passive PoE Port1 100~240V / 50~60Hz AC Power Input Port

Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

LED Indicator
PWR

Dimensions ( W x D x H )
3.4 × 1.7 × 1.4 in.(85.8 × 43.9 × 35.0 mm)

OTHERS

Certification
FCC, CE, RoHS

Package Contents
48V 18W Passive PoE Adapter TL-POE4818GPower CordWall Mounting Kits

Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing


Key Features:

Passive PoE Adapter
Powers TP-Link products that support 48V passive PoE TL-POE4818G

Power Your Devices
Use the passive PoE adapter TL-POE4818G to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE4818G offers a convenient wall-mounting brackets to be easily installed on a wall.
Compatible Devices
TL-POE4818G is recommended to offer power supply to TP-Link’s passive PoE products.
