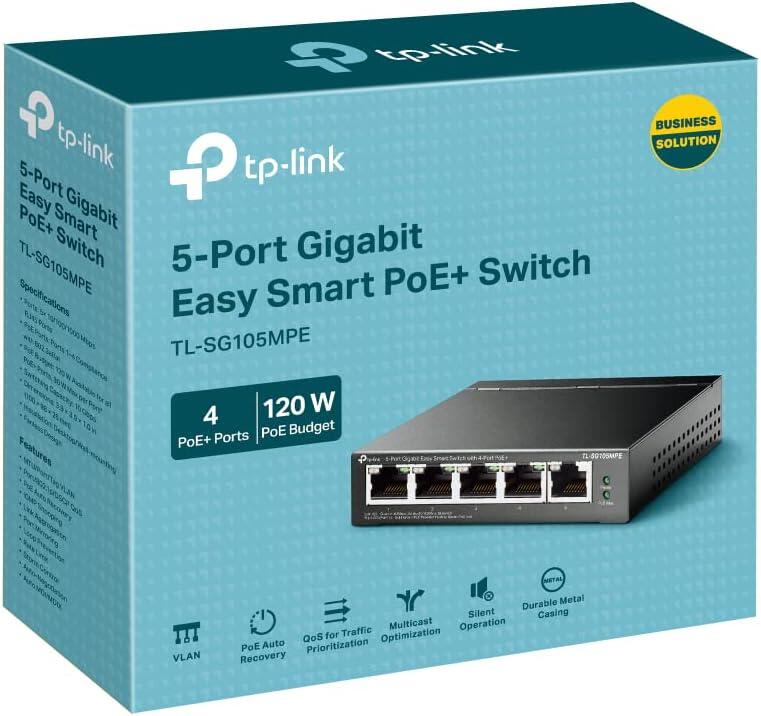

TP-Link TL-SG105MPE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Description

TP-Link TL-SG105MPE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Five 10/100/1000Mbps RJ45 ports
Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
Supports PoE power up to 120 W for all PoE ports*
Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
Fanless design lowers energy consumption and eliminates operating noise.

Specifications:

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at

Interface
Five 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity
Fanless

Power Supply
External Power Adapter (Output: 53.5 VDC / 2.43 A)

PoE Ports (RJ45)
Standard: 802.3 af/at compliantPoE Ports: Port 1- Port 4PoE Power Budget: 120 W

Dimensions ( W x D x H )
3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)

Max Power Consumption
4.34 W (220 V/50 Hz with no PD connected)137.01 W (110 V/50 Hz with 120 W PD connected)

Max Heat Dissipation
14.8 BTU/h (with no PD connected)467.17 BTU/h (with 120 W PD connected)

PERFORMANCE

Switching Capacity
10 Gbps

Packet Forwarding Rate
7.44 Mpps

MAC Address Table
2 K

Packet Buffer Memory
1 Mb

Jumbo Frame
16 KB

SOFTWARE FEATURES

Quality of Service
Support Port-Based/802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control

L2 Features
IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop PreventionPoE Auto RecoveryExtend Mode

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN

Management
Web-based GUIEasy Smart Configuration Utility

Transmission Method
Store-And-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
TL-SG105MPEPower AdapterInstallation GuideRubber Feet

System Requirements
Microsoft® Windows® for running Utility

Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90%RH non-condensingStorage Humidity: 5%~95%RH non-condensing



Features:
Multiple Application Scenarios
The TL-SG105MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also workswith non-PoE wired devices, such as PCs, printers, and IPTV.

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Omada EAPs

Wired Connections
Works with PCs and Printers

Dedicated 4 PoE+ Ports (120 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Easy to Use
1. Plug In
2. Connect Devices
3. Enjoy

Value-Added Features Bring Unexpected Experiences

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video.

IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups

Making Management Easy
TL-SG105MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Multiple Factors Guarantee Stable Operation
           System Self-Healing with PoE Auto Recovery
           The switch automatically detects and reboots the PD devices, such as cameras                 and APs, when they fall offline or go unresponsive, guaranteeing the stable                       operation of PoE-connected devices, without need for manual monitoring and                 restart.

Supports PoE Power up to 30 W for each PoE port
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. It is fully compatible with more 802.3at PD devices.
Great Compatibility with PD Detection


Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.



Long Product Life with Durable Metal Casing
Interior components of TL-SG105MPE are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, TL-SG105MPE delivers switching performance you can depend on.
