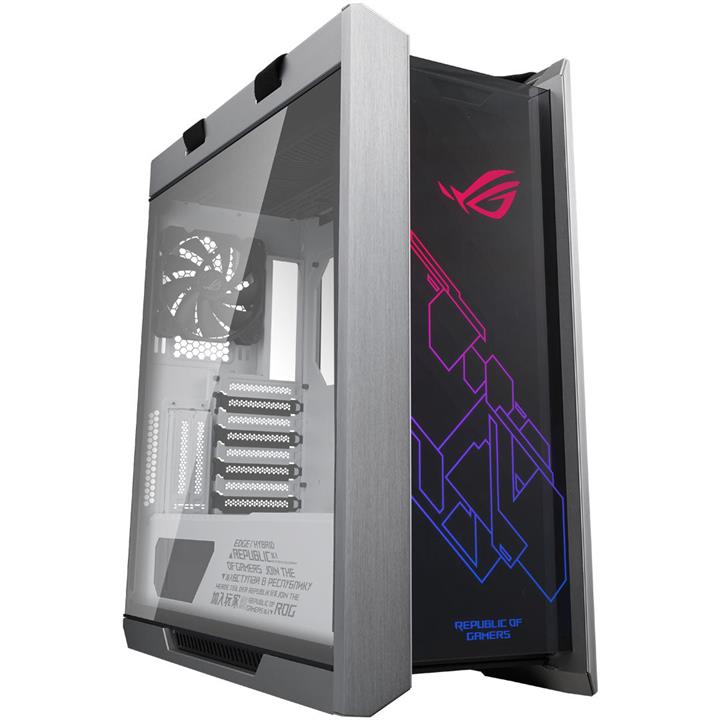

ASUS ROG Strix Helios White Mid Tower ATX Case

Description



Case Size

Mid Tower

Motherboard Support

EATX (12″x10.9″)
ATX
Micro-ATX
Mini-ITX

Drive Bays

4 x 2.5″ Bay
2 x 2.5″/3.5″ Combo Bay

Expansion Slots

8
2 (additional vertical)

Front I/O Port

1 x Headphone
1 x Microphone
4 x USB 3.1 Gen1
1 x USB 3.1 Gen2 Type C
LED Control Button
Fan Control Button
Reset Button

Tempered Glass

Front Side
Left Side
Right Side

Radiator Support (Front)

120 mm
140 mm
240 mm
280 mm
360 mm
420 mm

Radiator Support (Top)

120 mm
140 mm
240 mm
280 mm
360 mm

Radiator Support (Rear)

120 mm
140 mm

Cooling Support (Front)

3 x 120 mm
3 x 140 mm
Radiator + Fan Thickness: Max. 90 mm

Cooling Support (Top)

3 x 120 mm
2 x 140 mm
Radiator + Fan Thickness: Max. 60 mm

Cooling Support (Rear)

1 x 120 mm
1 x 140 mm

Pre-installed Fans (Front)

3 x 140 mm

Pre-installed Fans (Rear)

1 x 140 mm

Maximum CPU Cooler Height

190 mm

Maximum GPU Length

450 mm (Riser Cable above 200mm in length is required for one GPU install in vertical position)

Maximum PSU Length

220 mm

Removable Dust Filters

Front
Top
Bottom

Maximum Cable Management Space

33 mm

Dimensions

250 x 565 x 591 mm

Weight

18Kg

AURA Sync

ARGB
