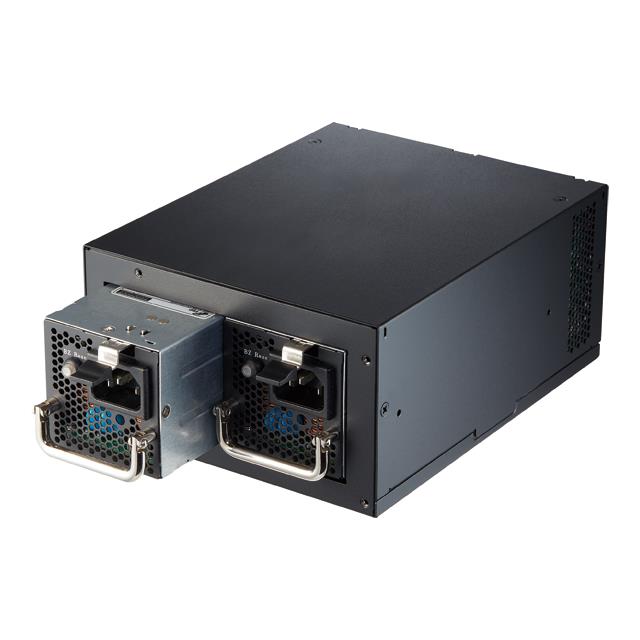

FSP FSP900-50REB Twins PRO 900W 80+ Gold ATX Redundant Power Supply

Description

FSP FSP900-50REB Twins PRO 900W 80+ Gold ATX Redundant Power Supply

ATX PS2 redundant size
Efficiency ≧ 90% at typical load
Quiet and long-lasting 40mm ball bearing fan
Ribbon cables for th need of enthusiasts
Powerful single +12V rail design
All Japanese electrolytic capacitors
Intel Latest CPU ready
Full protections OCP, OVP, SCP, OPP, OTP, FFP, UVP

Cage：FSP900-50REB

AC Input
100-240Vac~  10-6A  50-60Hz

DC Output
+3.3V
+5V
+12V
-12V
+5Vsb

Max Output Current
20.0A
20.0A
75A
0.5A
3.0A

Max Combined Power
130W




Total Power
900W

Redundant system design and built-in hot swappable modules
With redundancy in mind, the Twin Pro modular system design is more efficient and operates more quietly by distributing the power load between two hot swappable PSU modules. If one unit fails, the second unit takes control of the power load until a replacement is swapped in. Each unit can be hot swapped and replaced without any system down-time offering a seamless and uninterrupted operation.

Black ribbon cable design
The round black ribbon cable design helps with heat emission effect and extends the life span of the components. The ribbon cable design also offers a cleaner aesthetic and allows for better cable management in custom build systems.

Power cord locking device
The Twins Pro series features a power cord locking device that secures the power cord from acciedntal disconnect helping to ensure stable operation without any system interruptions.
