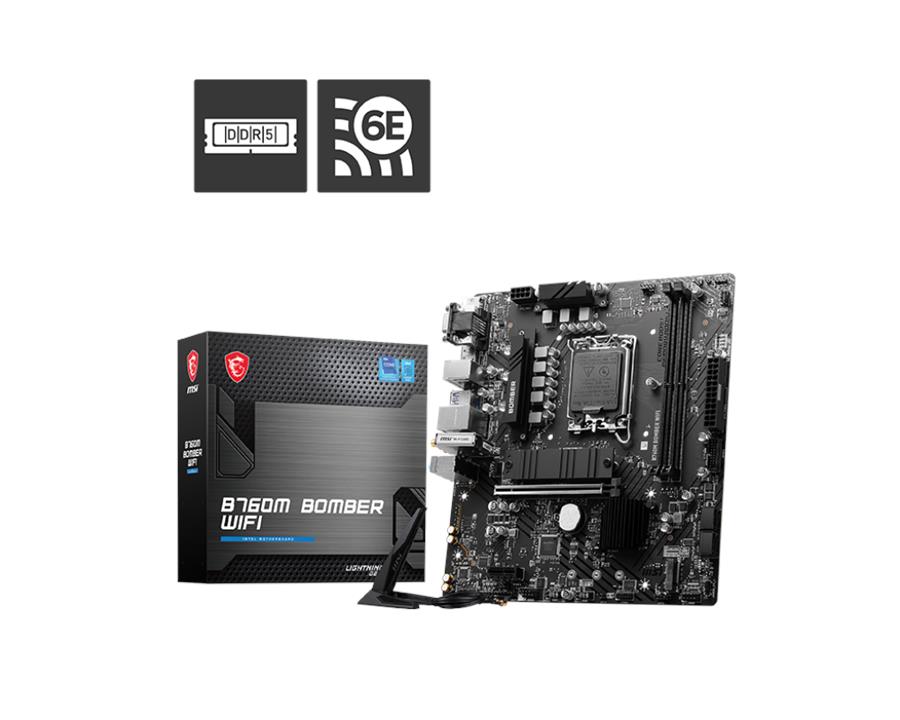

MSI B760M BOMBER WIFI Micro-ATX DDR5 Motherboard

Description

MSI B760M BOMBER WIFI Micro-ATX DDR5 Motherboard

Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications:

INTEL B760

CPU
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA 1700

MEMORY
2x DDR5, Maximum Memory Capacity 96GBMemory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)Max. overclocking frequency:• 1DPC 1R Max speed up to 6400+ MHz• 1DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory

ONBOARD GRAPHICS
1x HDMI™Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz*1x D-SubSupport VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT
1x PCI-E x16 slot (Qty)1x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 4.0 supports up to (From CPU)PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

STORAGE
2x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G (Qty)* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)

LAN
Realtek® RTL8125B 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO
Realtek® ALC897 Codec7.1-Channel High Definition Audio

INTERNAL IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports

LED FEATURE
4x EZ Debug LED
