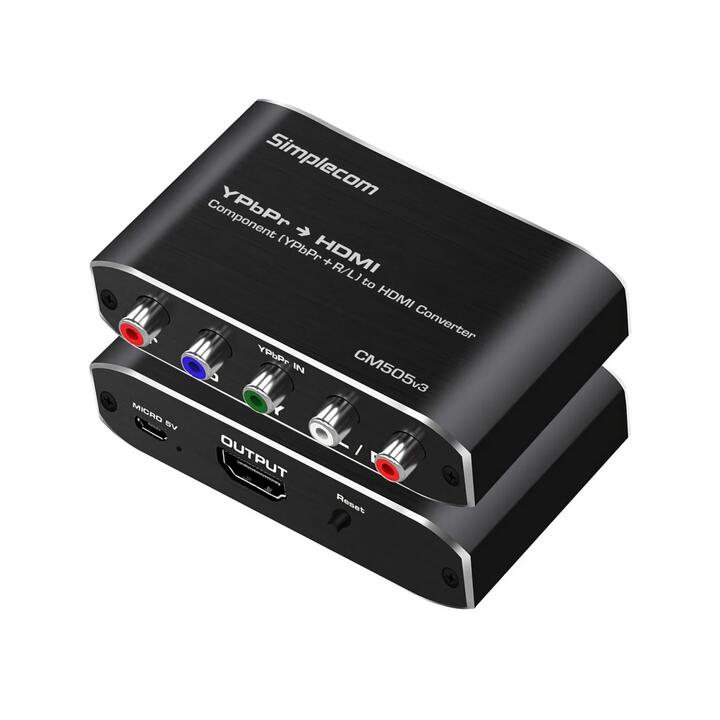

Simplecom CM505v3 Component (YPbPr + Stereo R/L) to HDMI Converter Full HD 1080p

Description

Key Features:

Analog to Digital Conversion: Converts analog component video (YPbPr) and stereo audio (R/L) to digital HDMI output, bridging the gap between legacy devices and modern displays.

High-Definition Support: Handles video resolutions up to Full HD 1080p, ensuring clear and sharp image quality.

High Bandwidth: Supports 165MHz/1.65Gbps per channel (4.95Gbps total), providing high-quality video transfer.

Deep Color Support: Capable of 8-bit color per channel (24-bit total), delivering vibrant and accurate colors.

Audio Support: Supports uncompressed 2-channel audio such as LPCM, enhancing your multimedia experience.

USB Powered: Powered via USB, with options to plug into a USB wall adapter or a nearby USB port on your TV for convenience.

Durable Aluminium Case: Constructed with an aluminium case for enhanced durability and excellent heat dissipation.

Legacy Device Compatibility: Ideal for use with older component video devices, allowing you to integrate them with modern HDMI displays.

Specifications:

Model: CM505v3

Input: Component (YPbPr) + R/L Stereo

Output: HDMI

Case Material: Aluminium

Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel

Vertical Frequency Range: 50/60Hz

Interlaced Resolutions: 480i, 576i, 1080i (50 & 60Hz)

Progressive Resolutions: 480p, 576p, 720p, 1080p (50 & 60Hz)

Operating Temperature: 0°C to 70°C

Operating Humidity: 10% to 85% RH

Storage Temperature: -10°C to +80°C

Storage Humidity: 5% to 90% RH

Power Input: USB 5V1A

Power Consumption (MAX): 5W

Package Contents:

1 x Component to HDMI Converter
1 x HDMI Cable
1 x USB Power Cable
1 x USB Wall Adapter

Important Notes:

One-Way Conversion: This converter only works from Component to HDMI and cannot be used in reverse.

Resolution Limitation: Converts video format but does not upscale resolution; the HDMI output will match the resolution of the component input (e.g., 1080i input results in 1080i output).

Audio Conversion: Supports 2-channel analog audio input but does not convert audio formats beyond this capability.
