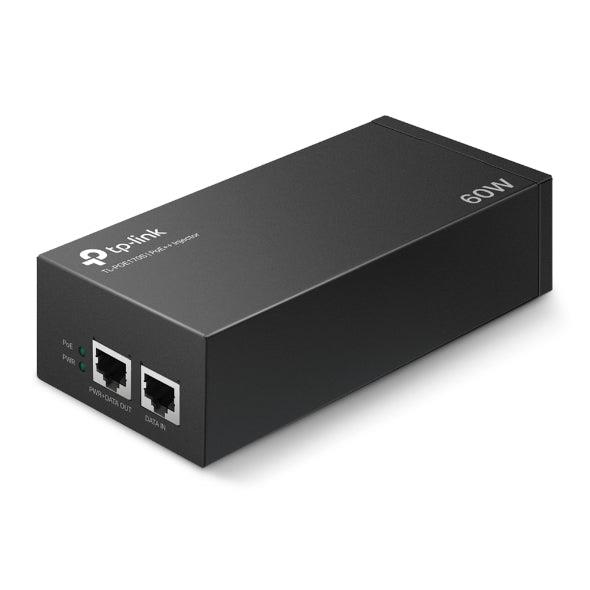

TP-Link TL-POE170S PoE++ Injector

Description

TP-Link TL-POE170S PoE++ Injector

2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device’s need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply
Durable metal casing.

Specifications:

NETWORK

Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*

GENERAL

Certification
FCC, CE, RoHS

Environment
Operating Temperature: 0°C to 45°C (32°F to 113°F)Storage Temperature: -40°C to 70°C (-40°F to 158°F)Operating Humidity: 10% to 90%RH non-condensingStorage Humidity: 5% to 90%RH non-condensing

Material
Metal Casing

PACKAGE CONTENTS

Package Contents
PoE++ Injector TL-POE170SInstallation GuidePower CordRJ45 Cable

HARDWARE FEATURES

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)EIA/TIA-568 100Ω STP (maximum 100 m)100BASE-TX: UTP category 5, 5e cable (maximum 100 m)EIA/TIA-568 100Ω STP (maximum 100 m)1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

Ports
1 10/100/1000Mbps RJ45 data-in port1 10/100/1000Mbps RJ45 power+data-out port1 AC socket

Power Consumption
Input: 100-240 V, 50/60 Hz, 1.6AOutput: Auto-determine the necessary power requirements (max. 60 W)

Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PDAuto-determine the necessary power requirementsWall-mounting and desktop installation supportedPlug-and-Play

Dimensions ( W x D x H )
6.1*2.8*1.7 in (155*70*42 mm)
