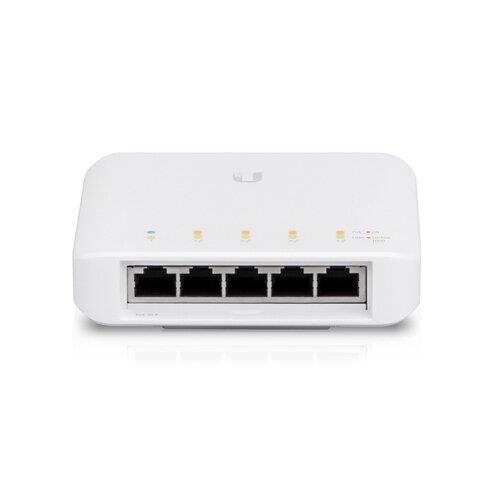

Ubiquiti UniFi USW-Flex POE+ Switch, 5-Port, POE 46W, (4) GbE PoE+ Ports, (1) GbE PoE++ Input, Layer 2, Wall Mount

Description

Ubiquiti UniFi USW-Flex POE+ Switch, 5-Port, POE 46W, (4) GbE PoE+ Ports, (1) GbE PoE++ Input, Layer 2, Wall Mount
Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.

(4) GbE PoE+ ports
(1) GbE PoE++ input port for power
— 46W PoE availability* PoE++ input— 20W PoE availability PoE+ input— 8W PoE availability PoE input
Indoor/Outdoor

Specifications:

Mechanical

Dimensions
122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1″)

Weight
230 g (8.1 oz)

Hardware

Management interface
Ethernet In-Band

Networking interface
(5) GbE RJ45 ports

PoE interface
(4) PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput
5 Gbps

Switching capacity
10 Gbps

Power method
PoE++

Power supply
PoE/PoE+ (Pins 1, 2+; 3, 6-)PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)50V/60W PoE adapter (Not included)

Supported voltage range
PoE: 44—57V DCPoE+/PoE++: 50—57V DC

Max. power consumption
5W (Excluding PoE output)

Total available PoE
46W**When powered with a PoE++ switch or a 60W PoE adapter (Sold separately).

Max. PoE wattage per port by PSE
25W

ESD/EMP protection
Air/contact: ± 16kV

Button
Factory reset

Operating temperature
46W PoE output: -40 to 55° C (-40 to 131° F)25W PoE output: -40 to 65° C (-40 to 149° F)

Operating humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

LEDs

System
Status

Ethernet
PoESpeed/link/activity

PoE
Link/activity

Application Requirements

UniFi Network
Version 5.10.3 and later
